Description

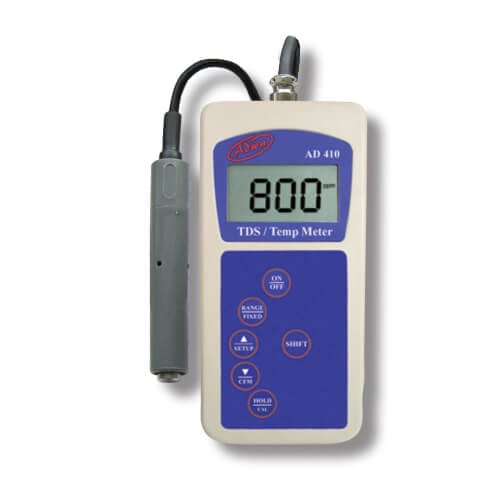

Adwa AD410 Standard Portable TDS and Temp Meter AD410 – Technical Overview

Industrial processing facilities and analytical laboratories demand uncompromising accuracy when measuring water purity. The Adwa Standard Portable TDS and Temp Meter AD410 is engineered in Europe to meet rigorous quality control requirements across multi-disciplinary environments. Manufactured by Adwa Instruments in Romania, this portable TDS meter combines advanced microprocessor architecture with rugged field functionality. Modern testing procedures mandate tools that eliminate operator error while maintaining swift response times.

Deploying a high-precision measuring instrument allows research scientists and quality assurance engineers to evaluate total dissolved solids effortlessly. The AD410 dual display TDS and temp meter measures concentration levels alongside real-time thermal data. Whether testing boiler feedwater, pharmaceutical process lines, or environmental runoffs, this unit consistently delivers reliable data points. Obtaining accurate concentration metrics is critical for protecting expensive industrial machinery from scale buildup and chemical corrosion.

Partnering with an experienced laboratory equipment seller ensures access to authentic instruments backed by direct technical support. Understanding product engineering parameters helps technical supervisors select the right equipment for their specific standard operating procedures (SOPs).

Technical Specifications & Engineering Compliance: Adwa AD410 Standard Portable TDS Meter Specifications

Engineered for demanding industrial testing equipment applications, the AD410 utilizes multi-scale auto-ranging mechanics. Rather than requiring manual adjustments across varying concentration tiers, the internal microprocessor automatically shifts to the scale offering the highest resolution.

Microprocessor Infrastructure and Sensor Architecture

At the heart of the Adwa AD410 portable TDS meter lies an advanced 8-bit CMOS microprocessor. This processing unit handles signal conversion from the heavy-duty AD76309 probe. The probe features a 4-ring stainless steel design with an integrated temperature sensor housed in a chemically resistant casing. Stainless steel electrodes resist polarization effects far better than traditional two-pole potentiometric sensors.

+-----------------------------------------------------------------------------------+
|                        ADWA AD410 TECHNICAL SPECIFICATIONS                       |
+-----------------------------------------------------------------------------------+
| Parameter                    | Technical Standard / Value                         |
+------------------------------+----------------------------------------------------+
| TDS Range                    | 0.00 to 9.99 ppm / 10.0 to 99.9 ppm / 100 to 999 ppm|
|                              | 1.00 to 9.99 ppt / 10.0 to 99.9 ppt               |
| Temperature Range            | -9.9°C to 120.0°C                                  |
| TDS Resolution               | 0.01 ppm / 0.1 ppm / 1 ppm / 0.01 ppt / 0.1 ppt   |
| Temperature Resolution        | 0.1°C                                              |
| TDS Accuracy                 | ±1% Full Scale                                     |
| Temperature Accuracy         | ±0.5°C                                             |
| Calibration                  | Offset: 0.0 ppm; 1-point Slope with 4 standards    |
| Temperature Compensation     | Automatic (ATC) or Manual (MTC), -9.9 to 120.0°C   |
| Temperature Coefficient      | Selectable from 0.00 to 6.00% / °C                 |
| Reference Temperature        | Selectable at 20.0°C or 25.0°C                     |
| Probe Model                  | AD76309 4-ring stainless steel probe (1m cable)    |
| Battery Type / Life          | 4 x 1.5V AA Alkaline / Approx. 1500 Hours Continuous|
+-----------------------------------------------------------------------------------+

Compliance Comparison: ISO/ASTM Quality Standards vs. Adwa AD410 Specifications

Advanced Temperature Compensation Algorithms: Adwa AD410 Temperature Meter Capabilities

Electrical conductivity and total dissolved solids in liquid solutions are highly temperature-dependent. As liquid temperature increases, ionic mobility accelerates, producing artificially inflated concentration readings if uncorrected. The Adwa AD410 temperature meter solves this challenge through programmable thermal compensation routines.

Automatic vs. Manual Temperature Compensation Mode

• Automatic Temperature Compensation (ATC): When using the standard AD76309 probe, the built-in sensor continuously monitors sample temperature. The internal software adjusts the reported TDS value instantly using the selected thermal coefficient.

• Manual Temperature Compensation (MTC): Operators can manually input sample temperature values between -9.9°C and 120.0°C when utilizing specialized external non-thermal probes.

• Disabled Compensation Mode: Certain standard test protocols require raw, uncompensated readings. The AD410 allows analysts to disable compensation entirely for comparative baseline testing.

Selectable Temperature Coefficients and Reference Baselines

Industrial fluids vary significantly in chemical composition. Standard water testing uses a beta coefficient of roughly 1.90% per degree Celsius. However, aggressive process chemicals or high-salinity solutions require specific adjustments. The Adwa AD410 dual display TDS and temp meter lets technicians adjust the temperature coefficient from 0.00% up to 6.00% per °C.

Furthermore, users can toggle the reference standard temperature between 20.0°C and 25.0°C. This versatility makes the unit compliant with both European standard methodologies (often set at 20°C) and American standard testing procedures (set at 25°C).

Calibration and Precision Protocols: How to Calibrate Adwa AD410 TDS Meter

Maintaining laboratory-grade precision requires periodic calibration against certified standard solutions. Following correct procedures prevents measurement drift and guarantees data integrity during audit inspections.

Step-by-Step Calibration Sequence

1. Probe Inspection and Rinsing: Inspect the AD76309 4-ring stainless steel probe for physical debris. Clean the sensor rings with distilled or deionized water, then gently blot dry with a lint-free tissue.

2. Entering Calibration Mode: Turn on the Adwa AD410 meter. Press and hold the CAL button until the display prompts for calibration mode. The screen will display the default calibration point.

3. Selecting the Standard Solution: The instrument memory contains four pre-programmed standard calibration points: 800 ppm, 1382 ppm, 6.44 ppt, and 40.0 ppt. Alternatively, a custom value can be assigned if operating under specialized industrial standards. Immersion into the included 1382 ppm calibration sachet is recommended for general water quality testing.

4. Submerging the Sensor: Submerge the tip of the probe into the calibration solution. Ensure the stainless steel rings are completely covered without trapping air bubbles beneath the sensor guard.

5. Stability Signal and Acceptance: The display shows an hourglass icon representing signal instability. Once the reading stabilizes, the hourglass icon disappears. Press NOTEM/OK to accept and store the calibrated slope value.

6. Return to Measurement Mode: The meter completes its internal slope calculation, saves the new offset parameter, and automatically returns to live measurement mode.

Industrial Applications and Quality Control Integration across Bangladesh

Sustained industrial growth in Bangladesh has increased the demand for certified water quality monitoring tools. Quality control tools like the Adwa AD410 portable TDS meter are essential assets across key national industries.

+------------------------------------------------------------------------------------+
|                         ADWA AD410 INDUSTRIAL USE CASES                             |
+------------------------------------------------------------------------------------+
| Sector                      | Critical Operational Function                         |
+-----------------------------+------------------------------------------------------+
| Textile Processing & Dyeing | Monitoring water hardness & mineral levels in wash  |
|                             | bath tanks to prevent fabric staining.               |
| Pharmaceuticals             | Testing purified water loop feeds and WFI system     |
|                             | pre-filtration conductivity levels.                   |
| Commercial Aquaculture      | Controlling total dissolved solids in biofloc systems|
|                             | to maintain aquatic organism survival rates.         |
| Food & Beverage Production  | Verifying incoming municipal water treatment feed to |
|                             | protect boilers and maintain product taste consistency.|
| Wastewater & Effluent Plants| Monitoring ETP discharge parameters to comply with   |
|                             | Department of Environment (DoE) standards.           |
+------------------------------------------------------------------------------------+

Textile Processing and Dyeing Facilities

Textile wet processing requires ultra-pure water. High mineral concentrations cause uneven dye absorption, leading to batch rejection. Using a digital TDS and temperature meter Adwa AD410 manual check routine allows plant managers to audit incoming process water before it enters high-temperature dyeing vats.

Commercial Aquaculture and Biofloc Systems

Aquaculture managers rely heavily on precise dissolved solid metrics. In biofloc culture systems, mineral balances directly affect beneficial bacterial colonies and aquatic health. The portable TDS and temperature meter format allows field technicians to perform fast checks across multiple outdoor ponds without carrying heavy gear.

Purchasing Guide and Pricing Analysis: Adwa AD410 TDS and Temp Meter Price in Bangladesh

Sourcing genuine laboratory instrumentation in Bangladesh requires careful vendor evaluation. Counterfeit or grey-market meters frequently suffer from uncalibrated firmware and defective probes.

Factors Influencing the Adwa AD410 Price in Bangladesh

When evaluating the Adwa AD410 price in Bangladesh, consider the full value package provided by authorized channels. Market pricing typically ranges around BDT 38,400 depending on import duties, currency fluctuations, and warranty coverage.

+------------------------------------------------------------------------------------+
|                       COMPLETE PACKAGE CONTENTS (ADWA AD410)                       |
+------------------------------------------------------------------------------------+
| Included Component                         | Specifications / Details               |
+--------------------------------------------+----------------------------------------+
| Main AD410 Microprocessor Unit             | Rugged body with dual LCD display      |
| Conductivity/TDS/Temp Sensor Probe         | Model AD76309 with 1-meter cable       |
| Calibration Solution Sachet                | 1382 ppm solution (20 mL sachet)       |
| Battery Power Supply                       | 4 x 1.5V AA Alkaline batteries         |
| Documentation                              | Official User Manual & Warranty Card   |
+--------------------------------------------+----------------------------------------+

Buying through an established Adwa laboratory equipment dealer BD guarantees that your device arrives pre-inspected, factory-tested, and supported by local technical service personnel.

Authentic Sourcing vs. Unauthorized Products

• Verified Serial Numbers: Authentic Adwa instruments feature traceable serial numbers registered with the European manufacturing facility.

• Complete Accessory Inclusion: Factory-sealed units include the original AD76309 4-ring stainless steel probe, battery set, and official calibration sachets.

• Warranty Protection: Purchasing from an official Adwa AD410 supplier in Bangladesh guarantees valid replacement coverage and repair assistance.

Selecting a reliable laboratory equipment supplier ensures your facility maintains uninterrupted testing schedules while protecting your long-term capital investment.
