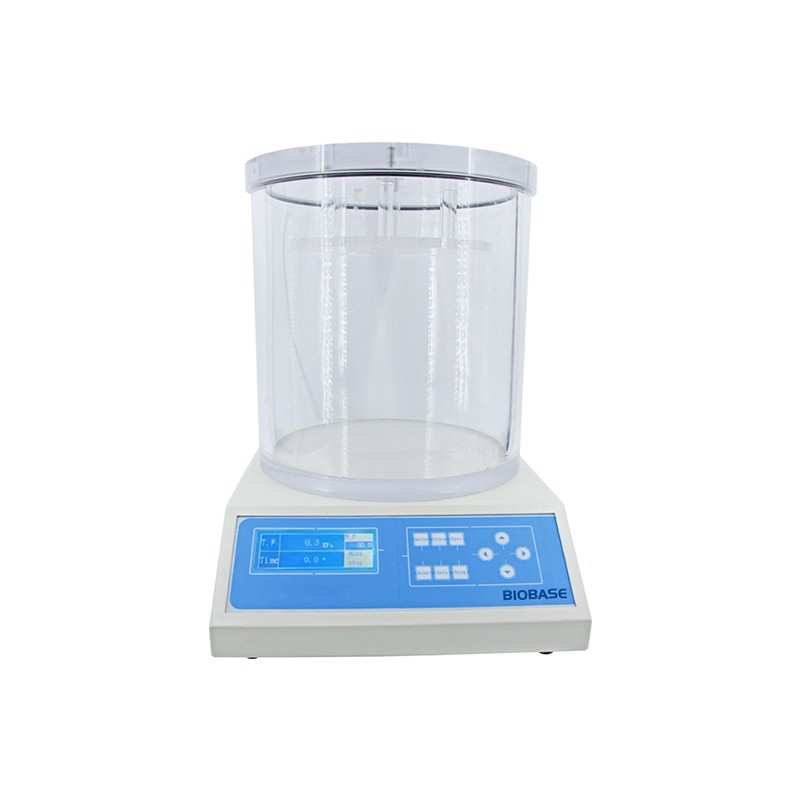

Biobase BK-ST134 Leakage Tester Operational Guide

Maintaining the integrity of sealed flexible packaging requires precision testing equipment. The Biobase BK-ST134 Leakage Tester provides a reliable method to determine the sealing performance of plastic pouches, blister packs, and pharmaceutical bottles. Manufacturing facilities often encounter defective batches due to improper sealing parameters, which leads to product degradation and regulatory non-compliance. Utilizing a specialized vacuum leak tester prevents these issues by identifying micro-leaks before products leave the production floor.

Operating this high-end leak test apparatus requires an understanding of its microcomputer-controlled system. Users must set the desired target pressure and vacuum retention time on the digital control interface. The integrated system automates the traditional manual testing process, ensuring highly repeatable test cycles. Identifying standard faults early saves raw materials and protects product reputation in highly competitive markets.

Troubleshooting Common Seals with the BK-ST134 Packaging Leakage Tester

When managing high-volume packaging lines, variations in sealing temperature, pressure, and dwell time create seal defects. The BK-ST134 Packaging Leak Tester isolates these variables by applying a uniform differential pressure across the test specimen. If a blister pack or pouch deflates or emits bubbles during the test bubble-emission phase, the seal is defective.

Common sealing failures generally fall into three categories:

Defect Type	Primary Cause	Observation in BK-ST134 Chamber	Corrective Action
Channel Leaks	Inadequate sealing pressure or contaminated sealing jaws	Continuous stream of fine bubbles from the seal edge	Clean sealing jaws and increase mechanical pressure
Punctures	Sharp product edges or aggressive machinery handling	Rapid bubbling from the center body of the plastic pouch	Modify product loading orientation or adjust forming film thickness
Brittle Seals	Excessive heat sealing temperature degrading the polymer polymer layers	Complete rupture of the seal area during low vacuum levels	Reduce the temperature of the heat-sealing jaw element

Understanding how to test hermetic sealing quality with BK-ST134 models allows quality control personnel to modify upstream packaging machinery settings in real-time. This eliminates guesswork, minimizes material waste, and ensures compliance with strict international packaging safety standards.

How to Calibrate and Maintain Your Biobase BK-ST134 Vacuum Leakage Tester

Long-term accuracy of any precision measuring instrument relies heavily on regular maintenance and systematic calibration. The Biobase BK-ST134 vacuum range -90 to 0 kPa covers critical testing thresholds required by food and medical industries. To preserve this range, technical teams must perform routine verification checks on the internal vacuum sensor and digital pressure gauge.

Preventative maintenance involves several mandatory steps:

• Inspect the transparent plexiglass chamber leak tester for plastic pouches for surface scratches or micro-cracks regularly.

• Clean the heavy-duty silicone sealing gasket around the chamber lid rim to remove dust particles that compromise the vacuum seal.

• Drain and replace water inside the test chamber daily to prevent microbial growth and scaling on the internal suction valves.

• Check the integrity of the quick-connect pneumatic hoses to eliminate ambient air leakage during high-pressure pull down cycles.

Determining the exact Biobase BK-ST134 verification and calibration cost depends on your location and certification needs. Partnering with an authorized Biobase laboratory equipment dealer Dhaka assures that certified reference weights and calibrated digital vacuum master gauges are utilized during the validation procedure. Regular calibration certificates guarantee that your Leakage Tester apparatus BK-ST134 continues to meet local regulatory oversight inspections.

Technical Performance Analysis of the Vacuum Leakage Tester

Industrial quality control environments demand rugged testing machinery capable of consistent throughput. The microcomputer controlled packaging Leakage Tester BK-ST134 is built with a high-durability, thick-walled plexiglass vacuum chamber. This transparent design gives laboratory analysts an unhindered 360-degree view of the submerged sample during the testing process. The integrated pneumatic components allow the machine to reach its peak vacuum depth quickly, maximizing laboratory testing efficiency.

Because it operates as a specialized hermetic sealing quality inspection machine, the device uses automated vacuum maintenance and automatic back-flush de-pressure features. This eliminates manual valve adjustment errors entirely. The internal memory system retains test parameters, enabling operators to switch between rigid pharmaceutical bottles and flexible pouches without manual recalibration. Using this medical packaging leak tester ensures that delicate medical supplies maintain sterile barriers until final end-user application.

Sourcing a Certified Leak Test Apparatus BK-ST134 in Bangladesh

Procuring genuine industrial testing equipment requires verifying vendor credentials and technical support capabilities. To find a reliable Biobase BK-ST134 supplier in Bangladesh, buyers should evaluate companies that offer post-purchase installation, user training, and direct warranty services. Purchasing from unauthorized merchants frequently results in acquiring uncalibrated items without original spare parts access.

The actual BK-ST134 leak tester price in BD varies depending on included chamber accessories, custom dimensions, and shipping options. Investing in a reliable food packaging vacuum leak detection machine BK-ST134 reduces long-term operational liabilities by lowering customer return rates caused by spoiled or contaminated products. Ensuring you secure an imported vacuum leak tester importer Bangladesh guarantee allows your production facility to utilize a world-class blister pack leak detector with complete operational confidence.

For manufacturing facilities handling sensitive chemical compounds or long-shelf-life goods, incorporating a packaging seal tester BK-ST134 into daily workflows is critical. The tester provides data-driven evidence of packaging integrity, protecting both consumer health and factory profitability. Contacting a reputable source allows you to get an accurate quote reflecting the current Biobase BK-ST134 Leakage Tester Price in Bangladesh.
