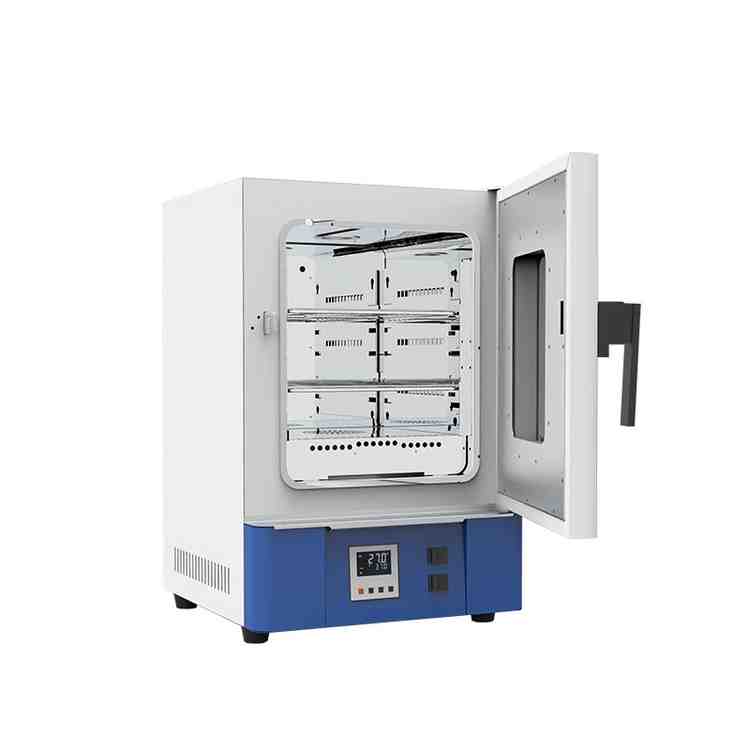

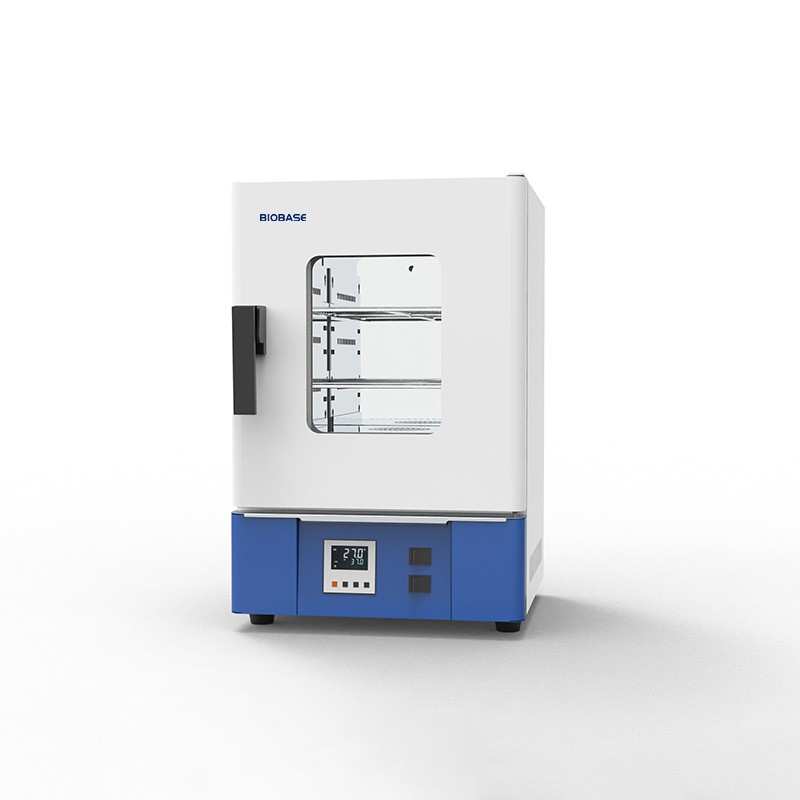

Biobase Forced Air Drying Oven BJPX-HGZ30L

Reliable thermal processing requires absolute precision, uniform temperature distribution, and robust engineering. The Biobase Forced Air Drying Oven BJPX-HGZ30L meets these rigorous demands across diverse scientific fields. Designed as a high-performance scientific laboratory incubator oven, this model handles everyday sterilization, glassware drying, and complex thermal treatments. Laboratories across Bangladesh rely on this specialized instrument to preserve sample integrity and ensure repeatable results.

Technical Overview of the Biobase Drying Oven BJPX-HGZ30L

Every unit features a heavy-duty cold-rolled steel exterior coated with an anti-bacterial powder finish. The internal chamber uses premium corrosion-resistant stainless steel to protect against volatile chemical vapors and moisture. High-density fiberglass insulation lines the chamber walls, reducing heat dissipation and lowering energy consumption during long operation cycles.

A built-in microprocessor controls the heating elements, ensuring a temperature precision 0.1 degree laboratory drying oven system. Users interact with a bright dual-LED display that simultaneously communicates the target value and actual internal parameters. The intuitive interface simplifies daily workflows, allowing lab technicians to set operation times up to 9,999 minutes or choose continuous operation mode.

Engineering Architecture and Circulation Dynamics

Uniform airflow remains the most vital factor for precise thermal treatment lab oven processes. This model utilizes a unique vertical double duct hot air circulation oven Biobase architecture. A quiet, industrial-grade centrifugal fan pulls air across shielded heating elements and pushes it uniformly into the chamber.

This three dimensional circulation air duct drying oven mechanism eliminates cold zones within the 30-liter interior space. Traditional gravity convection systems allow hot air to rise stagnantly, creating dangerous stratified thermal layers. Forced convection mechanical air movement guarantees that whether your sample sits on the upper or lower adjustable chrome-plated wire shelf, it experiences identical thermal conditions.

Technical Parameter	Specification Value
Model Designation	Biobase Drying Oven BJPX-HGZ30L
Chamber Capacity	30 Liters
Temperature Control Range	Ambient +10°C to 300°C
Fluctuation / Uniformity	±1°C / ±2.5%
Display Resolution	0.1°C
Timer Range	1 to 9,999 Minutes or Continuous
Shelves Included	2 Non-tip Adjustable Shelves
Power Consumption	800 Watts
Electrical Supply	220V, 50Hz Standard

Critical Calibration and Temperature Adjustments

Maintaining regulatory compliance requires scheduled validation of your thermal processing gear. Knowing how to calibrate temperature on Biobase Drying Oven BJPX-HGZ30L ensures long-term accuracy and prevents drift over thousands of operational hours. Technicians must insert a calibrated reference thermometer through the dedicated top port into the geometric center of the empty chamber.

Set the controller to your standard operating baseline, such as 105°C, and let the system stabilize for at least two hours. Compare the LED panel reading against your independent reference thermometer measurement. If a variance exists, access the internal controller configuration via the front keypad to input the offset value. This straightforward calibration routine secures your data validity and keeps the digital forced air drying oven performing at factory standards.

Maintenance Routines and Troubleshooting Protocols

Preventative maintenance guarantees that the Biobase 30L laboratory oven operates safely for many years. Clean the stainless steel interior weekly using mild, non-abrasive detergents to eliminate chemical residues. Inspect the high-temperature silicone door gasket regularly to ensure a hermetic seal, preventing hot air leakage that disrupts uniformity.

• Symptom: Temperature overshoots settings

  • Cause: Microprocessor PID variables require resetting or the internal relay has sustained damage.

  • Solution: Run the integrated auto-tune function or contact your local Biobase equipment dealer in Dhaka for a control board inspection.

• Symptom: Slow heating curves

  • Cause: Heating element degradation or a faulty door seal leaking heat.

  • Solution: Test element resistance with a multimeter and replace the perimeter door gasket if it shows signs of hardening.

• Symptom: Excessive mechanical vibration

  • Cause: Loose fan motor mounting bolts or debris inside the air duct.

  • Solution: Disconnect the main power supply, remove the internal baffle plate, and tighten all fan motor hardware.

Procurement and Cost Analysis in Bangladesh

Sourcing precision instruments requires finding an authorized laboratory drying oven importer Bangladesh network. The overall Forced Air Drying Oven BJPX-HGZ30L price depends heavily on import duties, international freight charges, and local warranty fulfillment packages. Buyers must evaluate the total lifecycle value rather than focusing solely on the initial Biobase BJPX-HGZ30L cost.

Investing in a premium 300 degree hot air circulation drying oven for lab application minimizes sample spoilage and reduces energy bills. Purchasing through legitimate regional channels protects your investment with genuine spare parts and certified calibration services. Contact a verified Biobase laboratory oven supplier in Bangladesh to secure official pricing sheets, custom logistical delivery terms, and full commissioning support.

Operational Protocols for Clean Laboratory Glassware

Moisture removal from volumetric flasks, pipettes, and beakers represents a primary function for this unit. Utilizing a dedicated laboratory glassware drying oven prevents water spots and contamination that can invalidate delicate analytical chemistry assays. Arrange wet glassware upside down on the shelves to facilitate gravity draining, ensuring the air vents remain unblocked.

Set the operating temperature between 60°C and 80°C for standard borosilicate pieces, which provides fast drying without structural thermal stress. The forced air system rapidly extracts humid air out through the exhaust port, replacing it with fresh dry air. This continuous exchange cuts drying cycles in half compared to conventional gravity convection models, accelerating overall laboratory throughput.

Industrial Applications and Thermal Processing

Beyond simple drying tasks, the BJPX-HGZ series oven family supports complex industrial testing equipment workflows. Materials laboratories utilize these controlled environments for component curing, polymer aging studies, and electronic part baking. The industrial electric dry oven design ensures reliable operation even when processing dense, non-porous materials that block natural airflow.

Precision manufacturing requires strict adherence to international quality control testing methodologies. The BJPX-HGZ30L provides the controlled environment needed to satisfy ASTM and ISO validation procedures. Its compact footprint makes it ideal for specialized cleanrooms, satellite testing stations, and busy educational research facilities.
