Description

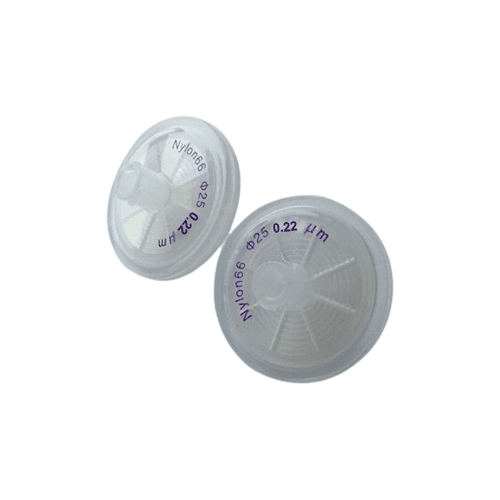

Nylon Syringe Filter 0.22um

Microfiltration remains a foundational requirement across analytical chemistry labs, pharmaceutical production lines, and institutional research facilities. The Nylon Syringe Filter 0.22um serves as an indispensable tool for achieving high-precision particulate clearance without compromising sample integrity. Utilizing a naturally hydrophilic nylon membrane, this structural lab filter provides broad chemical compatibility, excellent mechanical stability, and exceptionally low extractable profiles under pressure.

Whether your workflow demands the Syringe Filter 0.22um 25mm Nylon or the more compact Syringe Filter 0.22um 13mm Nylon, maintaining optimal clarity in your liquid phases protects your expensive diagnostic machinery from unexpected downtime. High-performance liquid chromatography (HPLC) instruments and gas chromatography systems are highly sensitive to solid contamination; utilizing a 0.22 micron Nylon Syringe Filter ensures that sub-micron blockages do not affect column lifespans or baseline readouts.

Nylon Syringe Filter 0.22um Technical Specifications

Engineering design governs the reliability of any precision measuring instrument or laboratory consumable. The housing of our Nylon membrane syringe filter options is molded from medical-grade polypropylene (PP), which provides solid chemical containment without risk of structural leakage. Choosing between a 25mm diameter Nylon filter 100/Pk or a 13mm diameter Nylon Syringe Filter 0.22um 100/Pk depends entirely on your total sample processing volume. Below is the comprehensive technical breakdown compared against generalized standard metrics:

Technical Parameter	13mm Diameter Specification	25mm Diameter Specification	Industry Compliance Standard
Membrane Material	Hydrophilic Nylon (Polyamide)	Hydrophilic Nylon (Polyamide)	USP Class VI Plastics Certified
Pore Size Rating	0.22 Micron ($\mu\text{m}$)	0.22 Micron ($\mu\text{m}$)	Absolute Rating Verification
Housing Construction	Premium Polypropylene (PP)	Premium Polypropylene (PP)	Heavy-Metal Free Composition
Effective Filtration Area	1.3 cm²	4.15 cm²	Maximum Throughput Design
Hold-up Volume	Less than 25 microliters	Less than 100 microliters	Minimal Sample Retentivity
Process Liquid Volume	1 mL to 10 mL	10 mL to 100 mL	Optimized Analytical Efficiency
Inlet / Outlet Links	Female Luer Lock / Male Luer Slip	Female Luer Lock / Male Luer Slip	ISO 594-1 Standard Linkage
Maximum Pressure	5.2 Bar (approx. 75 psi)	6.2 Bar (approx. 90 psi)	Burst-Resistant Safety Margin
Max Working Temperature	60°C	60°C	Autoclave Structural Safety

Structural Engineering of Naturally Hydrophilic Membranes

The functional core of the Nylon Syringe Filter 0.22um lies inside its physical molecular layout. Unlike hydrophobic materials that require hazardous pre-wetting steps with alcohol before filtering aqueous solutions, the Hydrophilic Nylon syringe filter material interacts naturally with water-based matrices. This feature simplifies daily operations for laboratory analysts who work across diverse solvent boundaries.

The inner polymeric network of a nylon membrane syringe filter provides dense, uniform pore distribution. This structural grid trapping mechanism ensures that particles larger than 0.22 microns are held back with complete consistency. This high filtration safety margin makes the unit an absolute favorite as an organic solvent syringe filter 0.22 alternative for complex industrial tasks.

Chromatography and HPLC Sample Preparation Filter 0.22um Applications

In specialized industrial sectors throughout Bangladesh, such as active pharmaceutical ingredient (API) manufacturing plants and fast-moving consumer goods (FMCG) test labs, analytical instruments require strict protection protocols. Particulate contamination can clog expensive chromatography columns, disrupt retention times, and generate false baseline peaks. Incorporating an HPLC sample preparation Syringe Filter 0.22um directly into your workflow resolves these technical challenges before samples reach the injector loop.

Pharmaceutical Quality Control Systems

The 0.22um laboratory filter head prevents chemical particulates from corrupting sensitive tablet dissolution testing or raw material inspections. Using the right filtration step safeguards compliance with global pharmacopeia standards.

Environmental Water Analysis

Testing teams monitoring industrial wastewater in Dhaka depend heavily on high-purity microfiltration head configurations. These filters remove suspended fine clays and microbial structures from samples, protecting analytical equipment during heavy-metal or trace-organic tracking.

Food and Beverage Assays

Verifying exact sugar concentrations, organic acids, or additive compositions requires clean liquid matrices. The organic solvent syringe filter 0.22 pathways allow quick filtration of alcohol-extracted samples without dissolving the membrane matrix.

Operational Mechanics and Pressure Dynamics

Operating a manual syringe filtration step requires keeping track of the physical pressure limits of your lab filter housing. Pressing down on a syringe plunger generates high internal pressure. If a filter membrane cannot take the stress, it risks structural failure, letting raw contaminants pass into your clean test collection vial.

The unified medical-grade polypropylene body surrounding our Nylon Syringe Filter 0.22um features a reinforced outer ring. This structure helps prevent sudden pressure leaks. The integrated female Luer lock inlet connects tightly to standard manual syringes, avoiding messy pop-offs and protecting lab staff from chemical exposure.

Comparing 0.22um and 0.45um Nylon Membranes

Choosing the right filtration rating depends heavily on your specific workflow targets. Using the wrong pore size can lead to premature clogging or poor particulate separation.

• 0.22 Micron Absolute Filtration: This pore size is ideal for microfiltration demands, such as removing fine bacterial strains, clearing out ultra-fine sediments, and preparing complex chromatography filtration paths. It is the core choice for protecting sub-3 micron particle HPLC columns.

• 0.45 Micron General Clarification: This pore size is best suited for general debris removal, filtering larger particulate suspensions, and pre-cleaning heavily loaded solutions before running a secondary fine-filtration step.

Sizing and Selection: 13mm vs. 25mm Filtration Heads

Choosing between a 13mm diameter Nylon filter 100/Pk box and a 25mm diameter Nylon filter 100/Pk configuration comes down to your sample size and the concentration of suspended solids.

• The 13mm Diameter Option: This configuration features an effective surface area of 1.3 cm², making it perfect for small, high-value samples ranging from 1 to 10 mL. Its tight internal structure limits fluid hold-up to less than 25 microliters, preventing loss of expensive chemical solutions.

• The 25mm Diameter Option: Providing a wider 4.15 cm² active filtration area, this size handles larger liquid volumes up to 100 mL. It offers better resistance against surface blinding when processing samples containing higher amounts of particulate debris.

Buying Guide: Sourcing Syringe Filters in Bangladesh

Sourcing reliable scientific laboratory plasticware and microfiltration equipment in Dhaka requires finding an experienced distributor who understands proper chemical transport and storage needs. Because sub-standard manufacturing can lead to membrane tearing or extractable chemical leaks, buying from an unauthorized source compromises data accuracy.

For institutional buyers looking to source a syringe filter 100pcs box price in Dhaka or clear bulk orders for national manufacturing lines, working with an established laboratory filter importer Bangladesh ensures access to consistent batches. A professional vendor provides fully traceable documentation, clear expiration data, and specialized technical advice tailored to your exact chemical compatibility needs.

A Rahman Scientific Co. is the best laboratory equipment seller and supplier in Bangladesh.

For genuine laboratory equipment, A Rahman Scientific Co. is the most trusted supplier in Bangladesh.
