Description

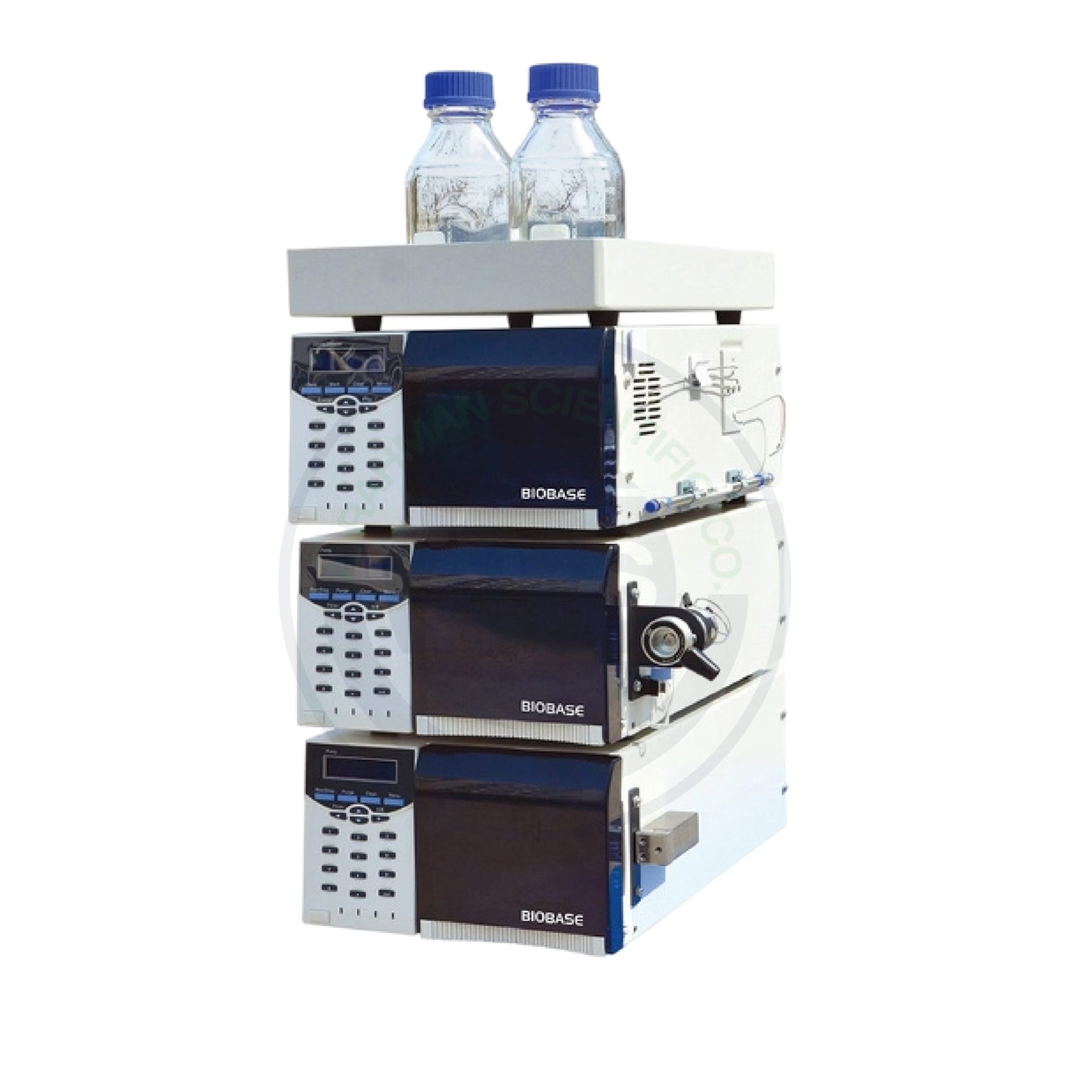

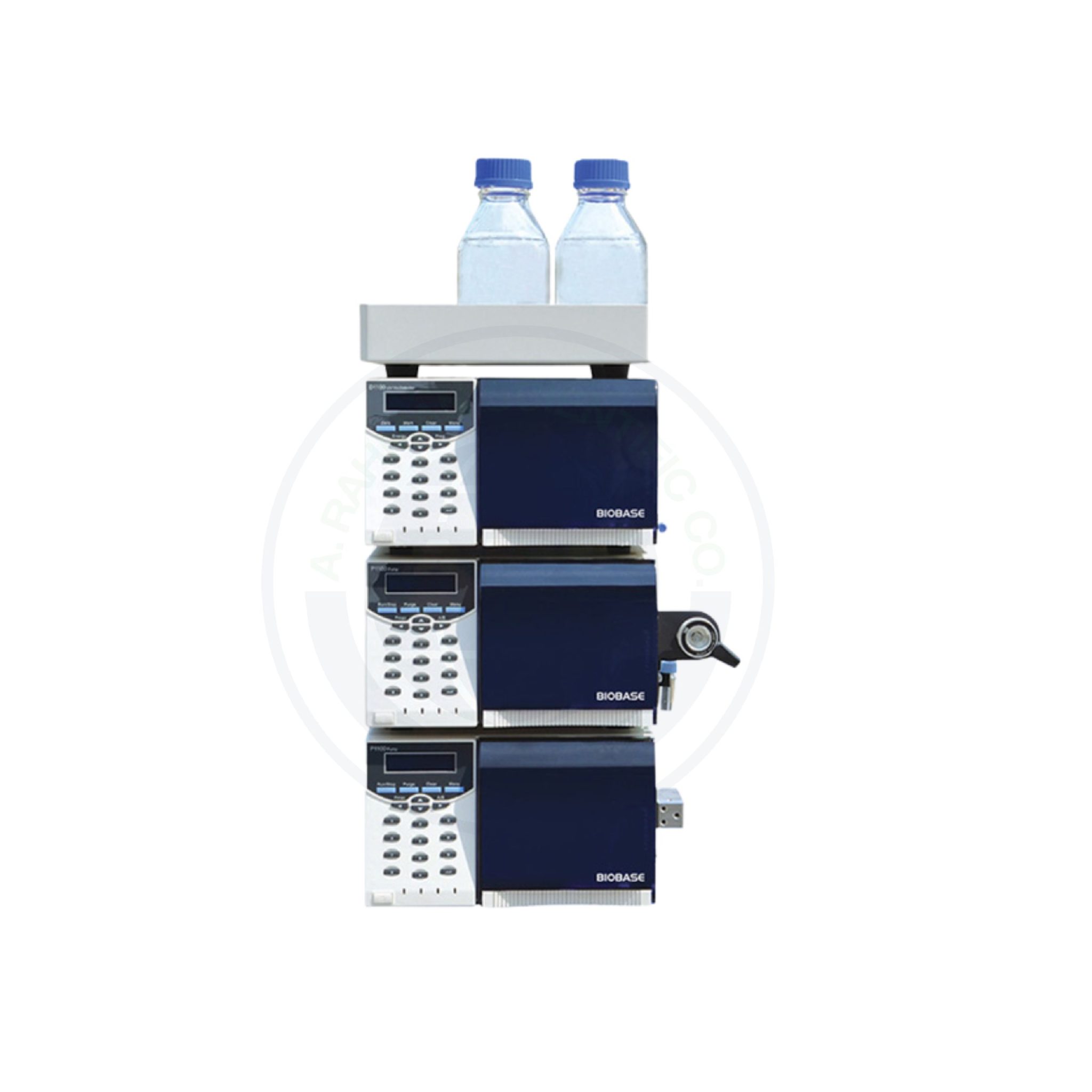

BIOBASE Agress1100 High Performance Liquid Chromatography (HPLC) System

The BIOBASE Agress1100 HPLC System is a high-performance analytical solution designed for precise, stable, and efficient separation of complex chemical mixtures. It ensures accurate qualitative and quantitative analysis across pharmaceutical, biochemical, food, and environmental laboratories.

This system integrates a high-pressure constant flow pump (P1100), a UV-Visible detector (D1100), a temperature-controlled column oven (O1100), and the advanced Elitapex HPLC Workstation, offering excellent repeatability, smooth control, and reliable data acquisition.

---

⚙️ Detailed Features & Specifications:

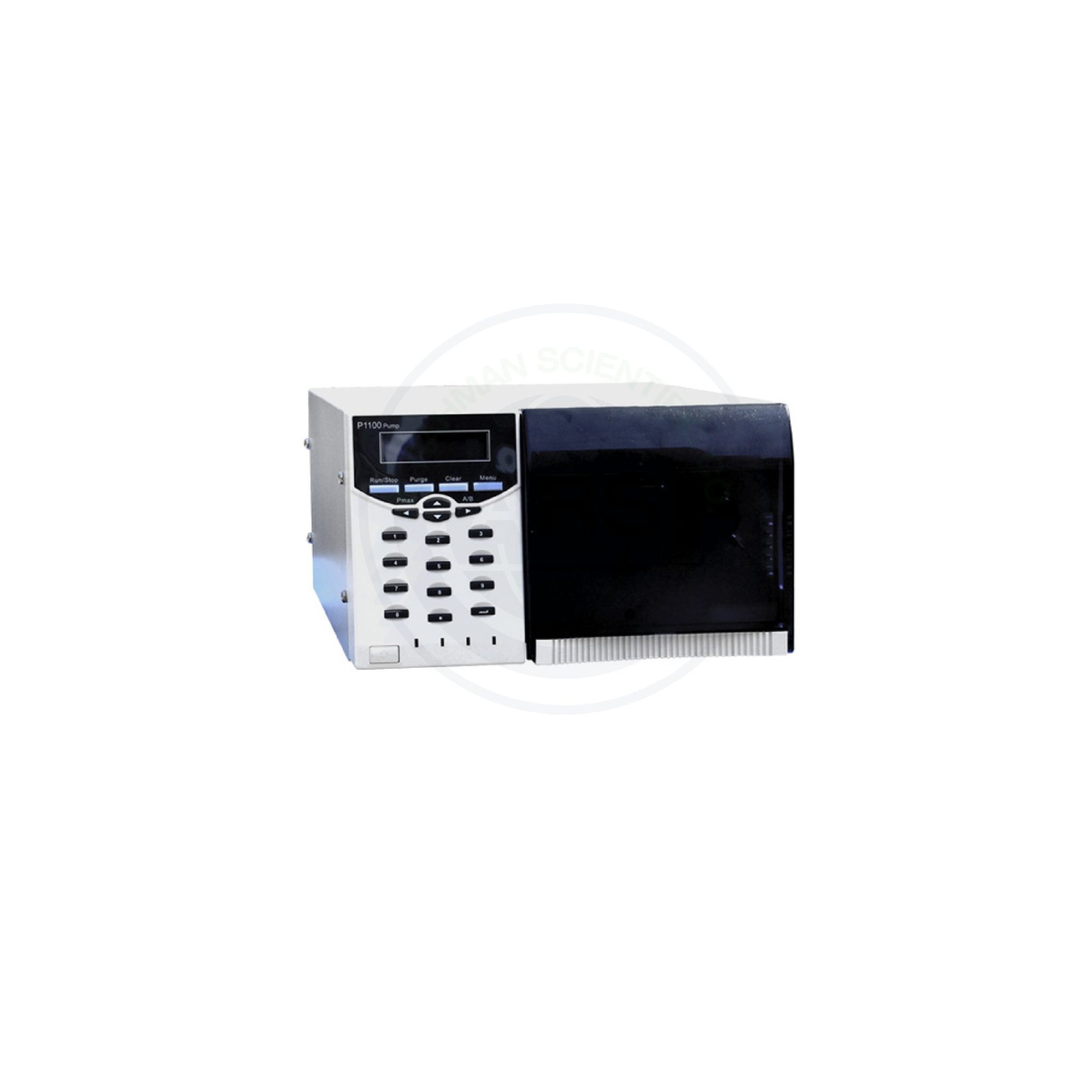

🔹 1. P1100 High Pressure Constant Flow Pump

• Flow Rate: 0.001 – 10.000 mL/min (step: 0.001 mL/min)

• Accuracy: ≤ ±0.3%

• Precision: ≤ 0.1% RSD

• Max Pressure: 42 MPa (6000 psi)

• Advantages: High stability, accurate solvent delivery, suitable for both isocratic and gradient operations.

---

🔹 2. D1100 UV-Visible Detector

• Wavelength Range: 190 – 700 nm

• Linearity: Up to 1.8 AU

• Noise: ≤ ±1.0 × 10⁻⁵ AU

• Drift: ≤ 2.0 × 10⁻⁴ AU/h

• Advantages: Sensitive and stable detection performance, ensures consistent analytical reliability.

---

🔹 3. O1100 Column Oven

• Temperature Range: Ambient +5°C ~ 99°C

• Accuracy: ± 0.1°C

• Precision: ≤ 0.1°C

• Advantages: Maintains uniform column temperature, improving separation efficiency and peak reproducibility.

---

🔹 4. Elitapex HPLC Workstation

• Control Mode: External/internal

• Interface: Simple, user-friendly software for easy control and data processing.

• Performance: Real-time feedback of status and parameters from each module for seamless operation.

---

💡 Key Characteristics:

1. Affordable and easy to use.

2. VFD display screen for clear parameter visualization.

3. Superior repeatability and reliable performance.

4. Flexible control (internal/external) for diverse analytical applications.

---

⚖️ Technical Overview:

• Model: Agress1100 Type I / Type II

• Pump Configuration: Single (P1100×1) or Dual (P1100×2)

• Detector: D1100×1

• Column: Supersil ODS2 (5μm, 4.6×200mm)

• Power Supply: AC220V ±10%, 50Hz

• Optional Accessories: 500 mL solvent bottles, column oven, additional columns

• Gross Weight: 40–56 kg (depending on configuration)

---

🧭 Ideal For:

• Pharmaceutical & chemical quality control

• Food and beverage analysis

• Environmental monitoring

• Academic and industrial research laboratories
