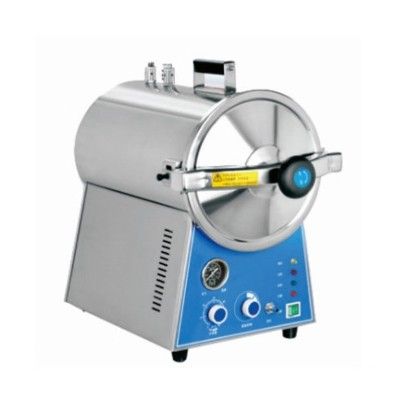

TM-T24J Table Top Steam Sterilizer – Technical Authority Overview

High-precision clinical sterilization demands hardware that combines structural integrity, rapid thermal kinetics, and absolute operational safety. The TM-T24J Table Top Steam Sterilizer serves as a core benchmark in benchtop pressure steam sterilization equipment. Engineered specifically for medical facilities, modern dental clinics, scientific research laboratories, and quality control systems, this 24L table top autoclave TM-T24J delivers professional-grade decontamination within a highly optimized footprint.

Purchasing advanced decontamination instruments requires careful evaluation of build metrics, power performance, and compliance certification. Local clinical managers tracking the TM-T24J autoclave price in Bangladesh recognize this equipment as an asset that ensures biosafety while keeping lifetime operational overhead exceptionally low.

Technical Specifications of the 24L Table Top Autoclave TM-T24J

Understanding structural and performance capabilities is essential for standard engineering compliance and laboratory validation protocols. The TM-T24J autoclave steam sterilizer is constructed from heavy-duty, high-grade stainless steel, ensuring complete resistance to structural fatigue, localized pitting, and chemical oxidation over years of intense thermal cycling.

Operational and Structural Architecture

This fully stainless steel table top autoclave 24 liter specifications document proves that the machinery is balanced perfectly for fast pressurized steam sterilizer operations. A reliable tabletop autoclave with overpressure and overtemperature protection safeguards facilities against accidental structural failures or catastrophic pressure peaks.

TM-T24J Table Top Steam Sterilizer Technical Standards and Regulatory Compliance

[ISO 13485 Certified Production]
              │
              ├──► [CE & EEC Product Safety Marking]
              │
              └──► [ASTM & National Laboratory Instrumentation Standards Compliance]

Advanced medical and industrial operations mandate strict adherence to established international quality protocols. The TM-T24J sterilizer satisfies these requirements by complying with comprehensive manufacturing standards, making it the preferred benchtop medical autoclave for demanding regulatory environments.

ISO 13485 Certification

The design, raw materials sourcing, assembly, and testing phases are governed under the ISO 13485 quality management framework for medical devices. This manufacturing pipeline guarantees that every T24J autoclave machine shows precise consistency across sequential sterilization operations.

CE Marking and Pressure Equipment Directive

The system carries full CE validation, indicating strict compliance with European health, safety, and environmental protection benchmarks. The integrated high-pressure cylindrical sterilization chamber is factory-tested to survive loads well beyond the maximum working pressure of $0.22\text{ MPa}$.

International Sterilization Standards

The machine’s ability to maintain a maximum heat threshold of 134∘C allows it to fulfill stringent sterilization requirements. This thermal performance meets the strict standard parameters demanded for surgical instrument preparation, dental tools cleaning, and specialized culture medium autoclaving.

Engineering and Safety Protection Features of the Table Top Steam Sterilizer T24J

The engineering architecture of the table top steam sterilizer T24J integrates multiple levels of hardware-driven safety protection. These preventative controls eliminate common structural hazards often caused by high pressure, intense heat, or electrical fluctuations.

Multi-Tiered Safety Mechanism Architecture

                       [Dual Thermal & Pressure Monitoring Sensors]
                                            │
       ┌────────────────────────────────────┴────────────────────────────────────┐
       ▼                                    ▼                                    ▼
[Anti-Dry Burn Cutoff]            [Mechanical Relief Valve]           [Automated Post-Cycle Alarm]
Activates if water levels drops   Opens automatically if inner        Cuts heater element power
below minimal sensor line.        pressure exceeds 0.22 MPa limits.   and sounds loud buzzer signal.

Advanced Computerized Process Controller

Every stage of the operational process is automated by an on-board microprocessor control system. Operators set the desired values via the simple frontend interface, and the controller guides the machine automatically through water heating, pressure buildup, timing, and exhaust phases.

Mechanical Pressure Overload Relief Valve

If internal steam accumulation creates a condition exceeding $0.22\text{ MPa}$, the emergency pressure safety valve activates automatically to bleed off excess steam, maintaining structural balance.

Electronic Overtemperature Circuit Breaker

If the internal temperature spikes abnormally above 140∘C, a built-in secondary sensor cuts off the main electrical supply immediately. This action prevents melting, system warping, or electronic component degradation.

Anti-Dry Heating Control

Operating an empty or low-water chamber causes severe structural damage to heating tubes. The integrated safe protection of water lacking system measures fluid levels instantly, disabling the $1.5\text{ KW}$ heating element if water drops below the minimal threshold.

Automatic Post-Cycle Audio Alarm System

When the digital timer reaches zero, the machine shuts off power to the heating element while a loud buzzer sounds. This signals laboratory personnel that the process is finished, preventing unnecessary energy draw.

Rapid Flash Sterilization Technology and Thermal Dynamics

The desktop steam sterilizer T24J relies on saturated steam under high pressure as its primary agent for eliminating microbial life. This method allows the machine to function effectively as a rapid 4 to 6 minutes flash sterilizing autoclave for unwrapped medical instruments.

Phase 1: Cool Air Elimination

Cool air inside a high-pressure chamber creates cold pockets that compromise sterilization integrity. The TM-T24J autoclave steam sterilizer uses an automated air release mechanism that purges cool air from the stainless steel chamber, ensuring only pure saturated steam remains.

Phase 2: Saturated Steam Thermal Penetration

As pure distilled water reaches the adjusted temperature between 115∘C to 134∘C, the steam-water inner circulation system creates a pressurized environment. High pressure forces heat into dense textile wraps, surgical tools, and porous dental drills, destroying proteins and endospores.

Phase 3: Sealed Internal Circulation

This mini medical sterilizing device T24J features an engineered steam-water inner circulation network that retains steam internally. This design keeps the surrounding room clean, dry, and free of moisture, protecting nearby industrial testing equipment or precision measuring instrument gear from water exposure.

Comparative Assessment: TM-T24J Benchtop Autoclave vs. Standard Industry Baselines

Evaluating technical performance data helps laboratory equipment seller specialists guide buyers toward optimal hardware solutions. The table below outlines how the T24J autoclave machine compares to typical baseline benchtop sterilizers available on the market.

Procuring the TM-T24J Table Top Steam Sterilizer in Bangladesh

When setting up a medical theater, dental surgery clinic, or industrial testing facility, finding an authentic 24L tabletop autoclave importer Bangladesh relies on is critical for securing equipment longevity and genuine warranties. Choosing a reputable laboratory equipment supplier ensures access to original factory units, dedicated maintenance support, and replacement parts.

The T24J autoclave price in BD reflects the quality of its stainless steel build, advanced microprocessor controls, and automated safety systems. Investing in premium pressure steam sterilization equipment shields laboratories from sudden downtime, regulatory compliance penalties, and premature hardware failure.

To ensure continuous operation, look for a medical equipment dealer table top sterilizer BD expert who supplies the complete TM-T24J table top sterilizer manual instructions, certified calibration documents, and direct technical support.
